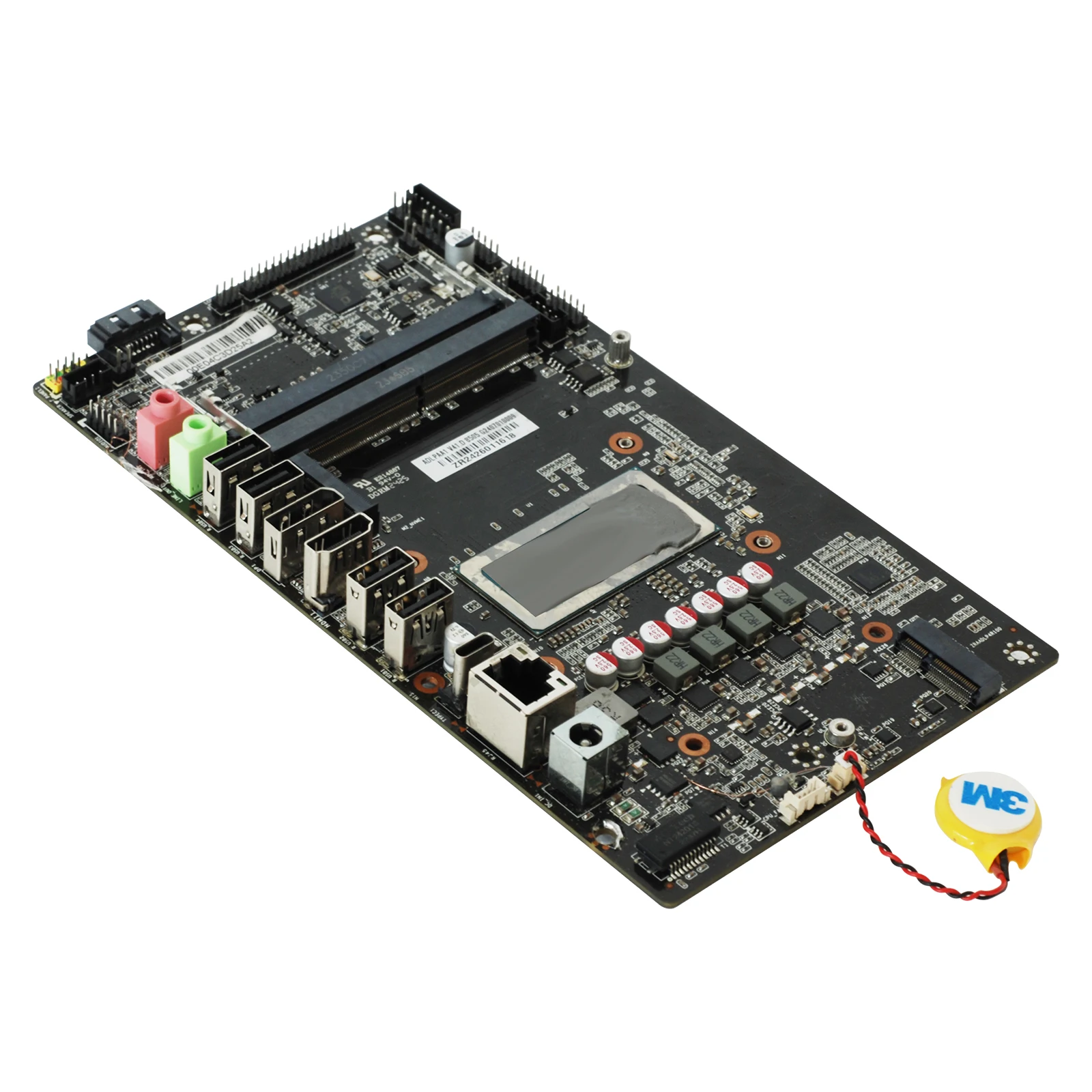

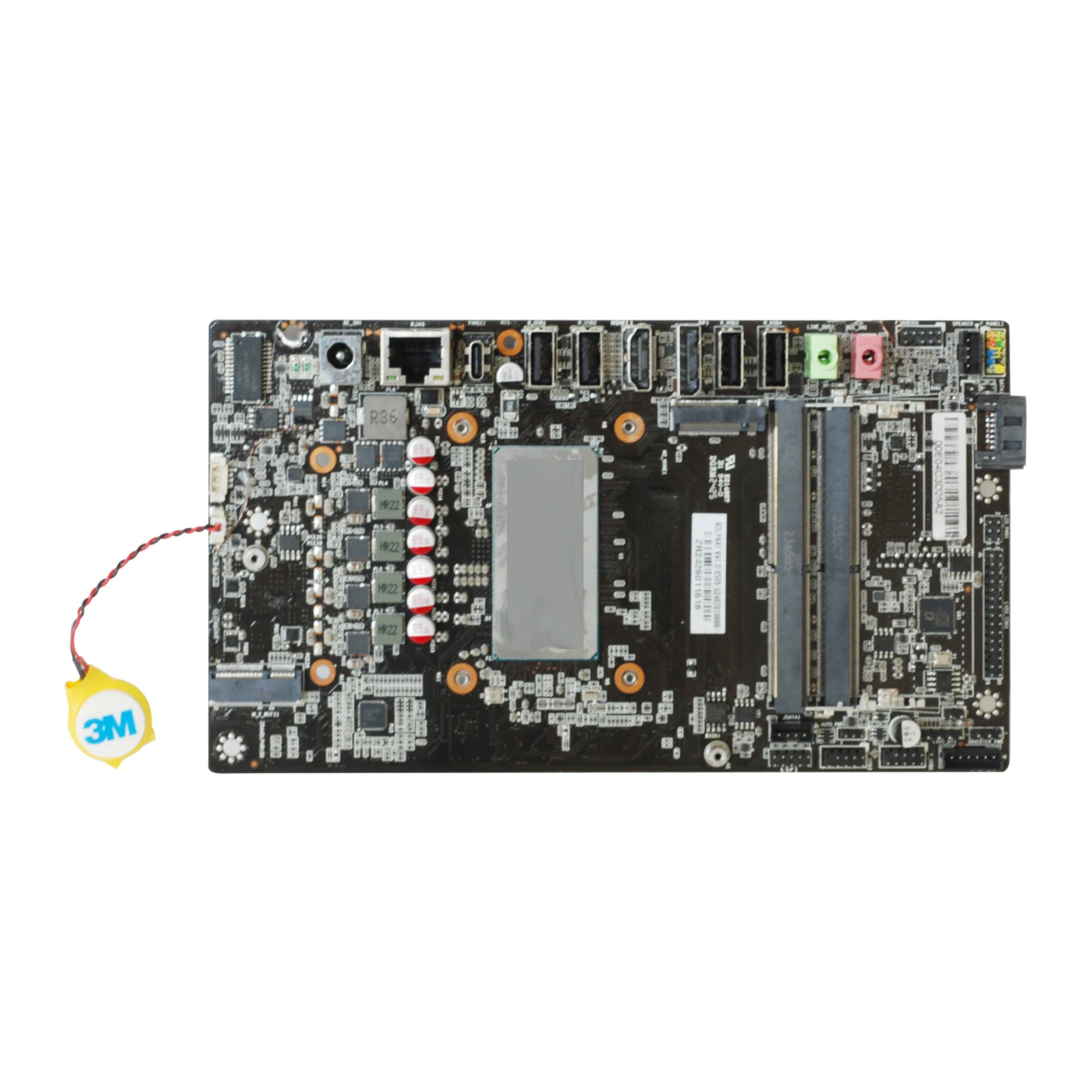

Factory Wholesale ADLPAA1 ITX Motherboard Support Alder Lake U/P/H Processors DDR4 Mainboard for All in One PC

Categories:

Industrial Electronics

Product Description

Processor	Intel® 12th Alder Lake-U/P/H，Pentium，Celeron series processors Intel® 13th Raptor Lake-U/P/H series processors
Chipset	Alder Lake-U/P/H SOC FCBGA1774
Graphic	1 x DP port(optional COM/VGA), 1 x HDMI port 1 x LVDS (optional EDP)
Memory Support	2 x DDR4 SODIMM Slot 3200MHz, up to 64G
LAN	1*Realtek RTL8111H 10/100/1000Mbps Ethernet
Audio	1*Realtek® ALC897 High fidelity audio controller
SATA	1*M.2_SSD M key Type 2280/2242 support PCIe X4/SATA SSD
M.2	1 x SATA3.0 port
Back panel	1DC-IN port 1RJ45 port 1TYPE_C port 1HDMI port 1DP port 2USB3.2 Gen2 ports 2USB2.0 ports 1LINE_OUT 1*MIC_IN
On-Board Pinheaders / Connectors	1F_AUDIO connector 1SPEAKER connector 1JSATA connector 1F_PANEL connector 1TPM hardware module （optional） 2F_USB2.0 connector ∟support 4USB2.0 ports 1AUTO_PWR connector 1BAT connector 1JCMOS connector 1CPU_FAN connector 1eSPI connector 1LVDS_BT connector 1INVERTER connector 1LVDS connector 1LCD_PWR connector 1*LVDS_BT connector
Slots	1 x M2_WIFI slot type 2230 ，support CNVi
Form factor	Nano 192mm * 107mm
Mounting	5 mounting holes
