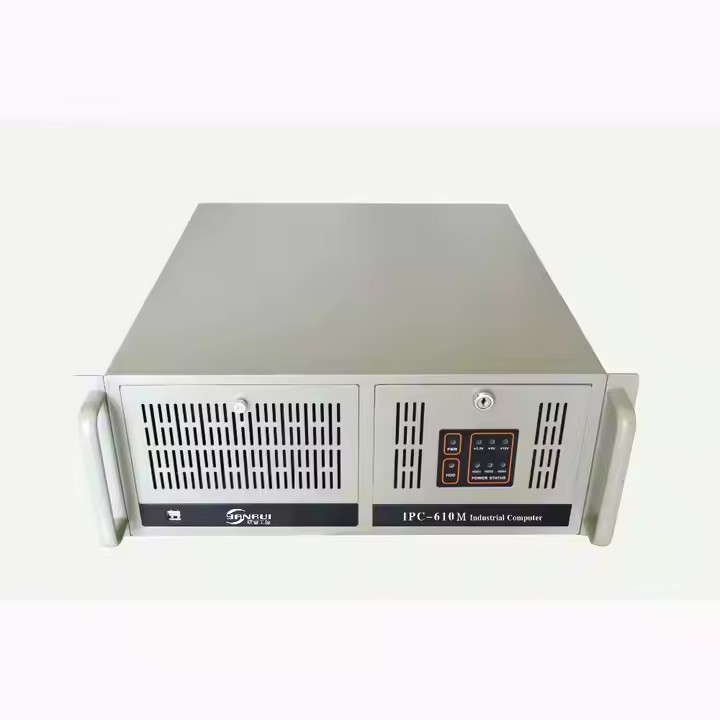

Automation Industrial Complete Machine 4U G41 Full-size Card YR-IPC610M-G41
| Categories: | Industrial Electronics |
Sparkle Star Technology (PVT) LTD
+94 740558154 / 772147898
Sparkle Star Technology (PVT) LTD
+94 740558154 / 772147898
| Categories: | Industrial Electronics |
Specification
Mechanical technical literatures | Mainboard | IMG41 industrial motherboard |
Processor | Intel E6300(pentium Dual-core 2.8GHz) | |
Chipset | Intel G41+ICH9R | |
Memory | 2G DDR3,MAX:4GB | |
Memorizer | 500G SATA 3.5 inch HDD | |
CD-ROM | Asus DVD CD-ROM(Optional) | |
Keyboard mouse | A4TECH USB Keyboard and mouse(Optional) | |
Power supply | FSP300W AC 100-240V | |
Display | VGA | 1*VGA |
I/O Interface | COM | 6* Serial port(COM2 support RS232/422/485) |
LPT | 1*LPT port | |
USB | 8*USB2.0,Max 12*USB2.0 | |
Network | 2*1000Mbps(RTL8111DL) | |
Expansion Interface | PCI | 5*PCI slot |
ISA | -- | |
PCI-E | 1*PCIE-X16 slot | |
1*PCIE-X1 slot | ||
Case size | 480 x 427x 177 mm(DxWxH) | |
Pack size | 610 x 520x 260 mm(DxWxH) | |
Operating temperature | -20℃~60℃ 10~90%@40℃(Non self-solidifying) | |
Storage temperature | -40~70℃ 5%~90%@40℃(Non self-solidifying) | |
TYPE | configuration list | ||||||
CPU | Memory | Power supply | CD-ROM | Memorizer | Mainboard | 4U Case | |
YR-IPC610M-G31 | E5300 | DDR2 -2G | FSP300W
| / | 500GSATAHDD | IMG31ISA
| IPC-610H |
