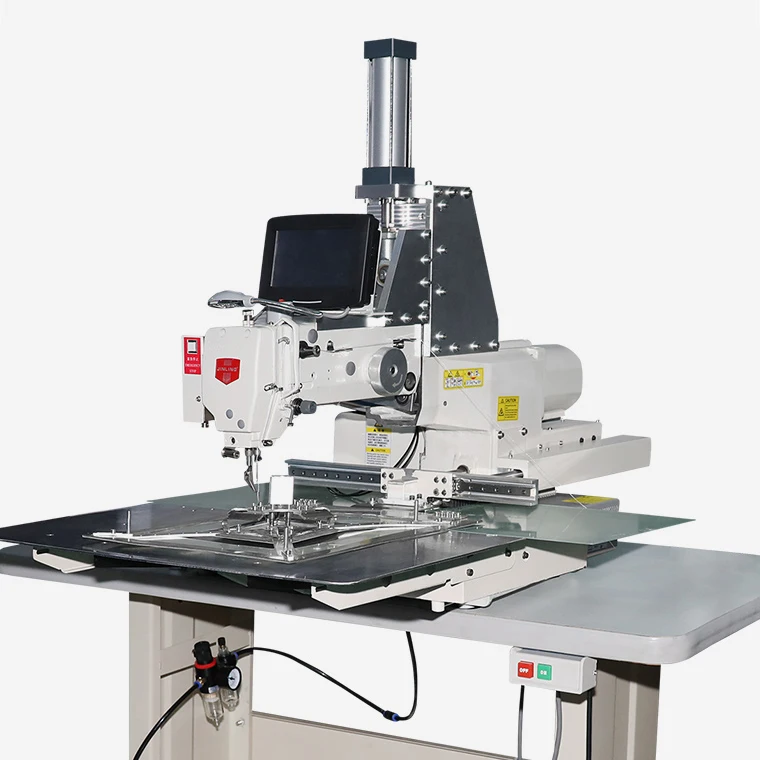

1. | Commodity | FIBC ton bag sewing machine |

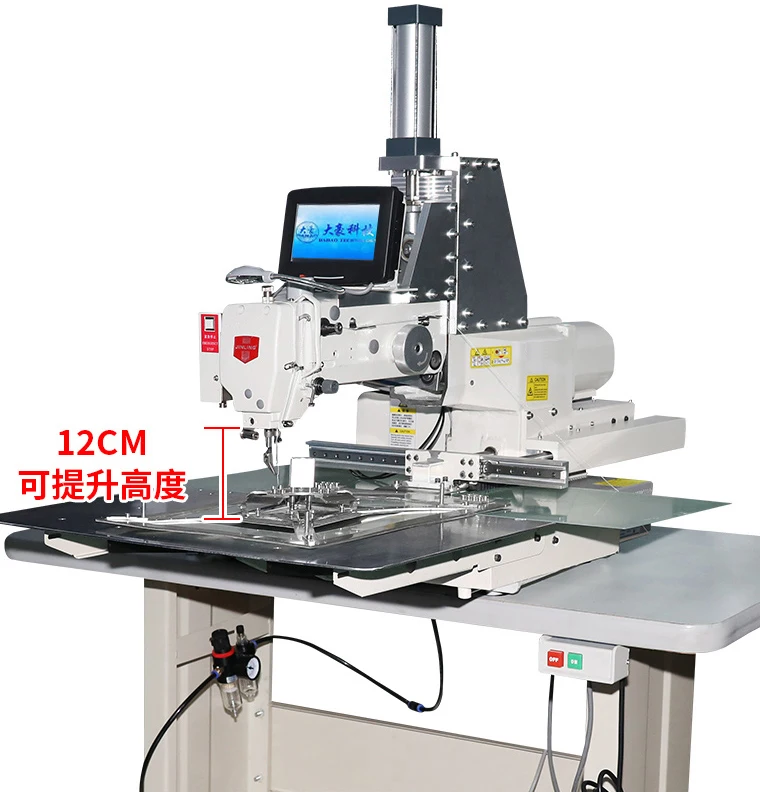

2. | Machine head lift height | 12cm |
3. | Sewing Area | X(Lateral) Direction Y(Longitudinal) Direction
300(mm) x 200(mm) |
4 | Max. Sewing Speed | 2800rpm |
5. | Stitch Length | 0.1～12.7mm |
6. | Feed Motion of Frame | Intermittent feeding (2-shaft driven by pulse motor) |
7. | Needle Bar Stroke | 41.2mm |
8. | Presser foot stroke | 4 mm to 10 mm |
9. | Needles | DP×5、DP×17 |
10. | Work Holder Lift | 38mm |
11. | Presser Foot Lift | 15mm |
12. | Hook | 3 times large rotary hook |
13. | Memory of Pattern Data | Internal & USB |
14. | Pause function | Stop the machine during the sewing |
15. | Scaling Up/Down Function | Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per
step) |
16. | Scaling Up/Down Method | Increasing / decreasing stitch length & Increasing / decreasing stitch number |
17. | Sewing Speed Limitation | 200～2800rpm（100rpm per step） |
18. | Pattern Selection Function | Pattern No. selection method |
19. | Up counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
20. | Down Counter | No Count/Count of Pattern /Count of Cycle (0～99999) |
21. | Sewing Machine Motor | Servo Motor |
22. | Stop Needle at Highest Position Function | After the completion of sewing, the needle can return to its highest position |
23. | Rated Power | 750W |
24. | Operation Temperature Range | 0℃～45℃ |
25. | Operation Humidity Range | 35%～85% （No Dew Condensation） |
26. | Line Voltage | AC 220V ± 10%；50/60Hz |
27. | Plywood box size | 126x126x192cm |
28. | Packing volume | 3cbm |
29. | Gross weight | 286kg |
30. | Application | FIBC, ton bag, jumbo bag, etc. |
31. | Certification | CE, RoHS |
32. | Language | Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol. |
33. | OEM | Yes |
34. | Working lasting | 24 hours long lasting |
35. | HS code | 8452219000 |
