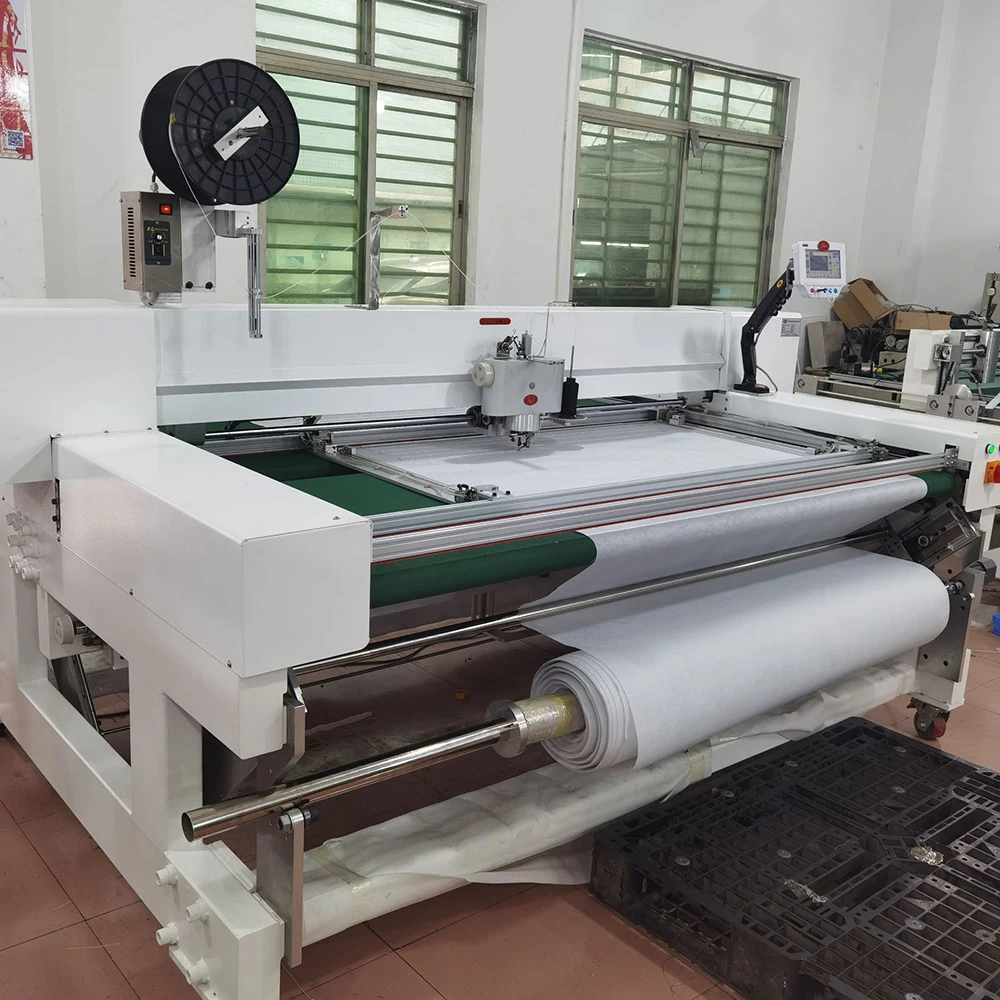

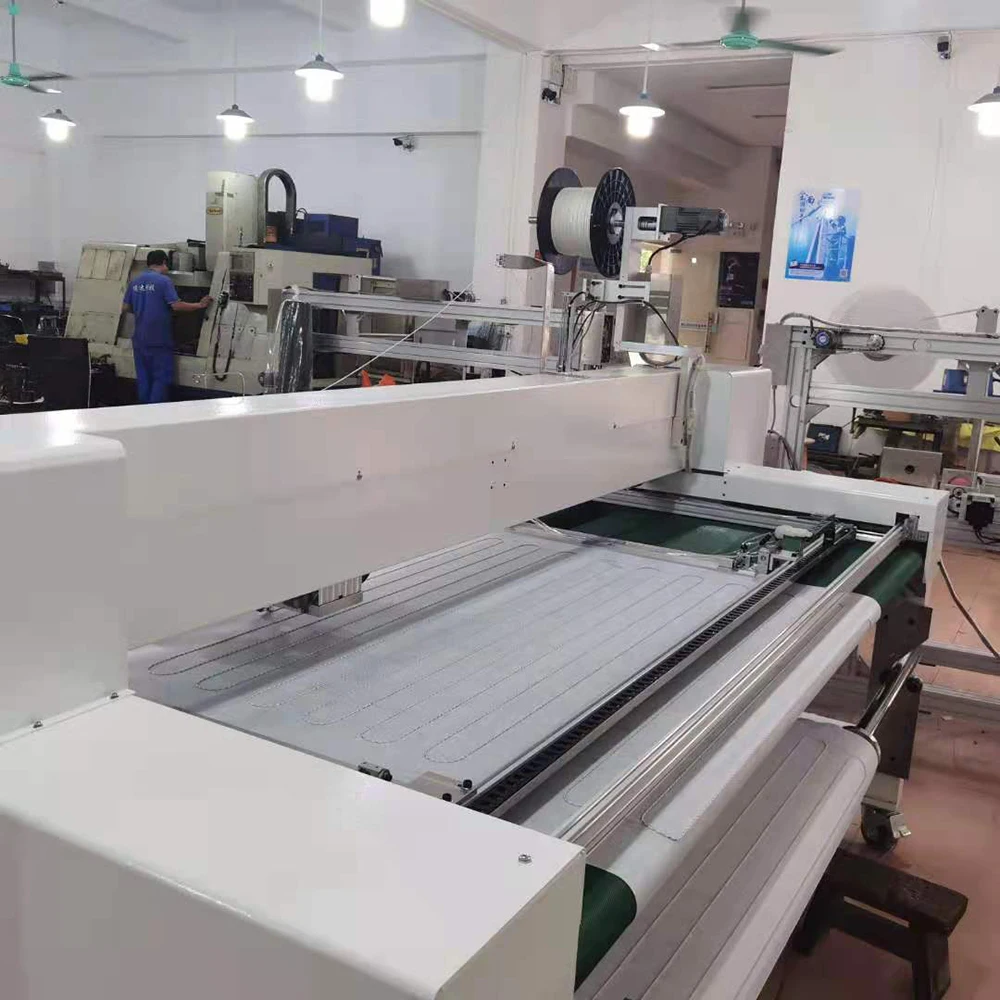

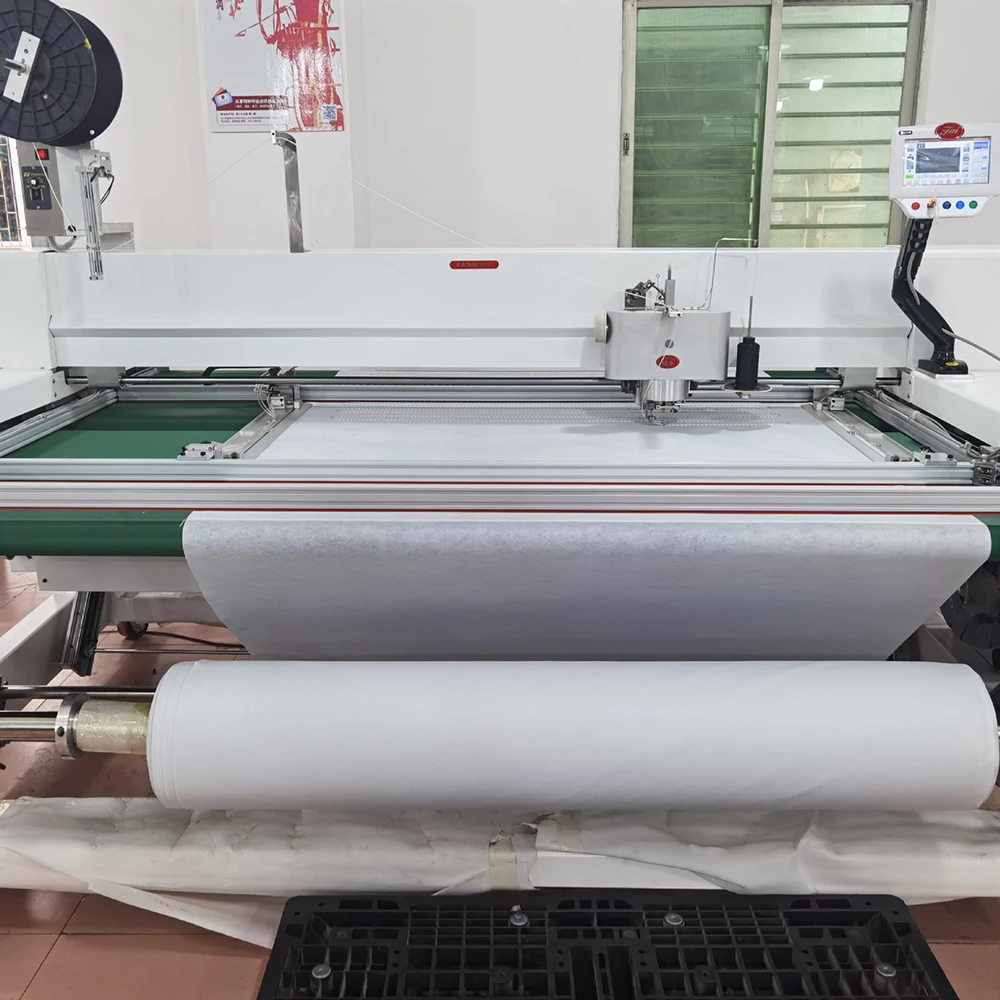

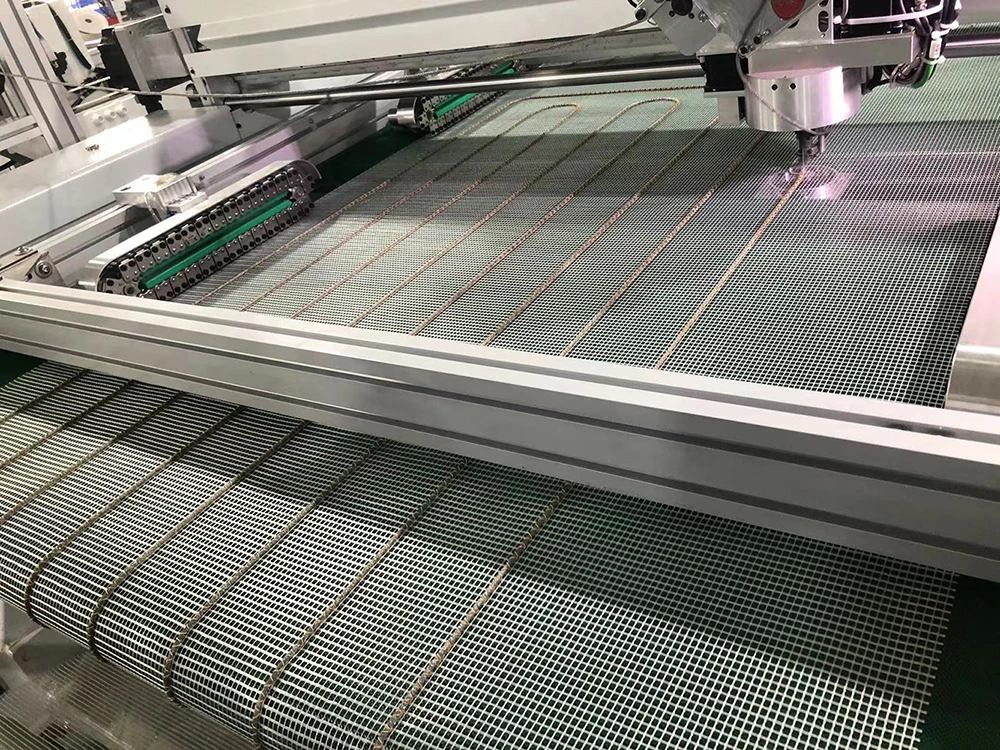

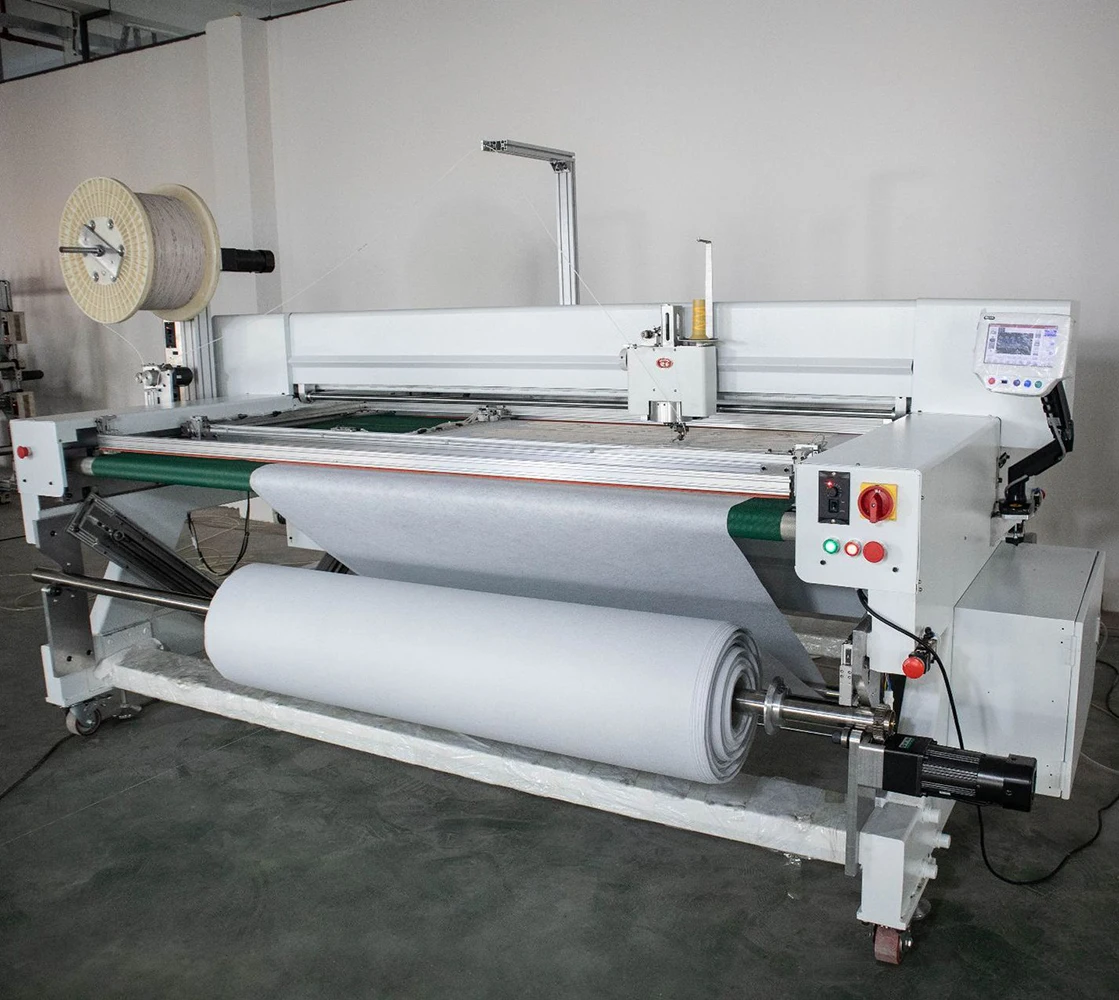

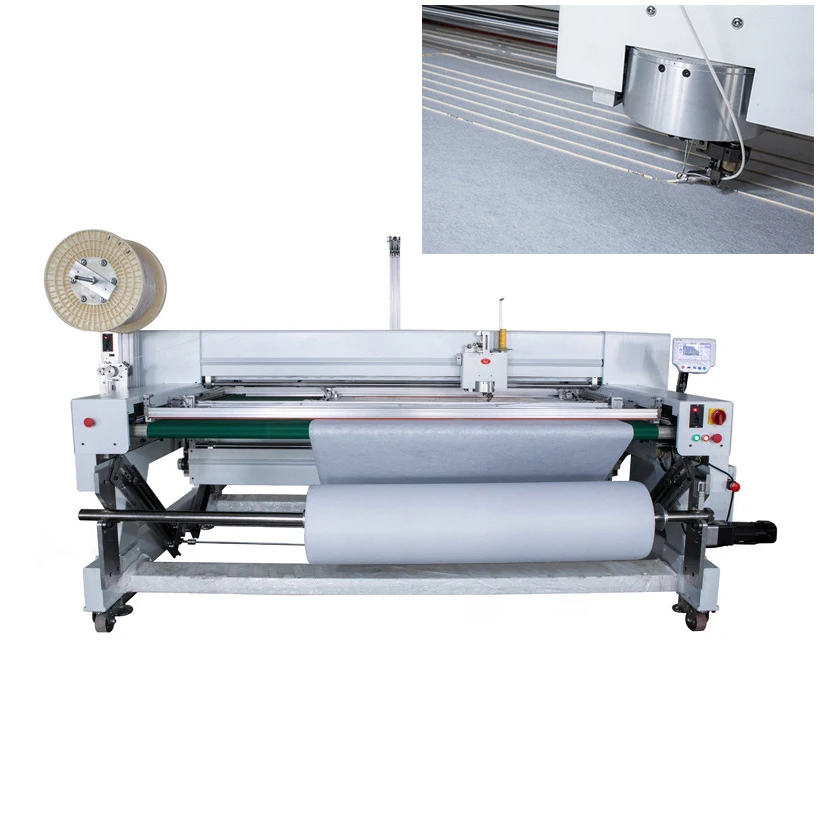

Full Automatic Machine for Making Underfloor Heating Floor Heating Radiant Floor Heating

2.

Sewing Area

1000 (mm) * Infinitely long (customizable)

3.

Max. Sewing Speed

1500 RPM

4.

Stitch length

0.1-5.0mm(resolution capacity 0.1mm)

5.

Function device

Fast mould, high-low presser foot/special thread clamper

6.

System

Self-developed control system

7.

Speed set

200-1500rpm, 10 sections set

8.

Thread pendulum radian

0-10mm

9.

Maximum stitch amount

Needles/1 pattern

10.

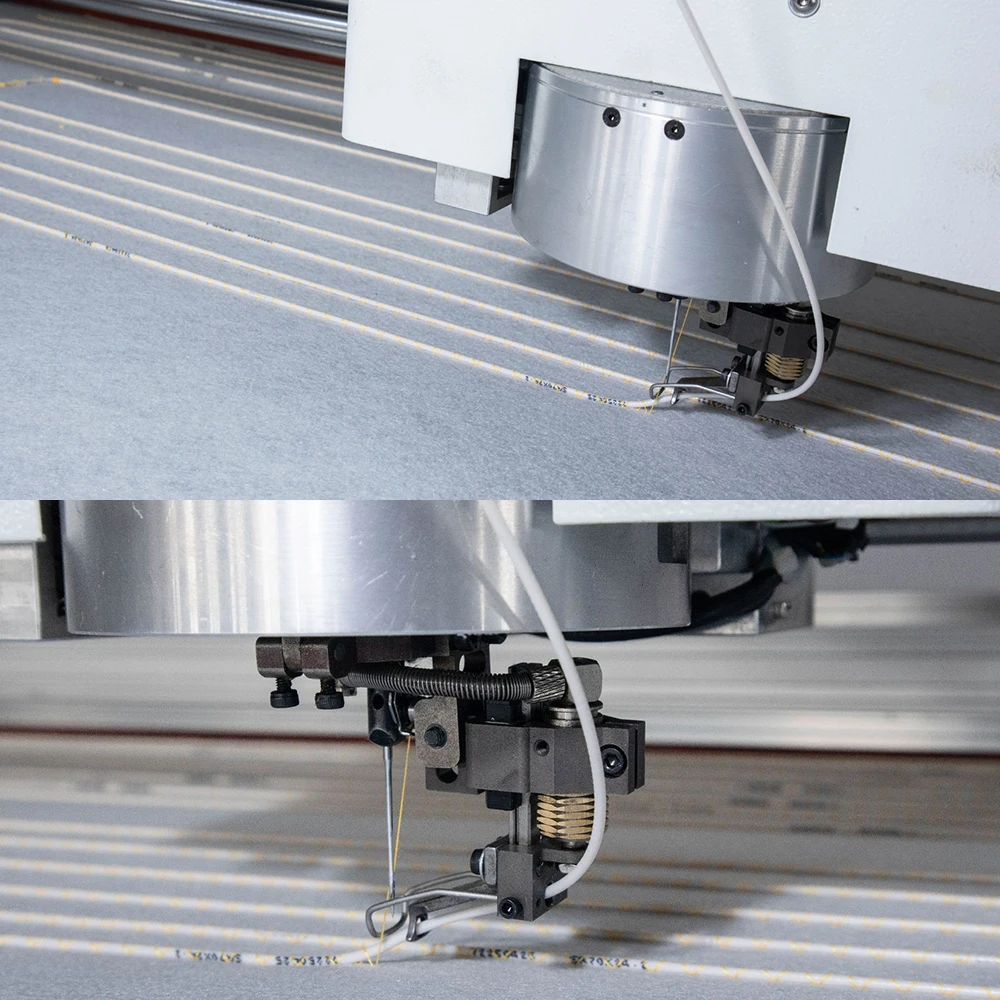

Rising amount of outer presser foot

32mm

11.

Rising amount of inner presser foot

20mm

12.

Stroke by inner presser foot

4-10mm

13.

Presser foot drive method

Pendulum type

14.

Pattern memory

Internal storage(999 patterns), U disk

15.

Hook

No hook (large circle line)

16.

Valve

Airtac

17.

Guide rail

TBI

18.

Belt

ALPNA

19.

Needle

DP*17*18

20.

Spindle motor

750W

21.

Operation Temperature Range

0℃～45℃

22.

Operation Humidity Range

35%～85% （No Dew Condensation）

23.

Line Voltage

AC 220V ± 10%；50/60Hz

24.

Machine structure

Automatic winding

25.

Plywood box size

2450*1920*1550mm

26.

Packing volume

7.29cbm

27.

Gross weight

800kg

28.

Application

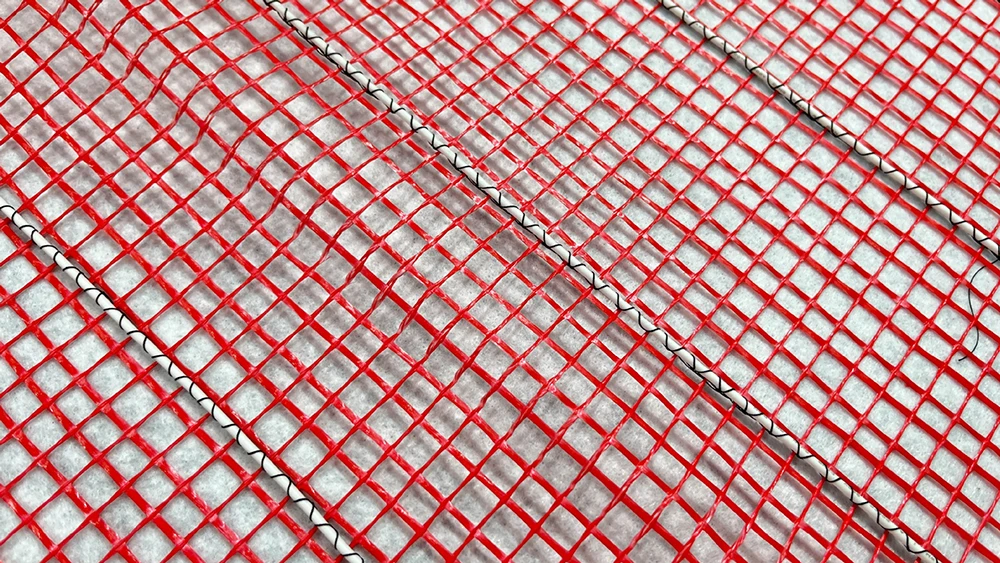

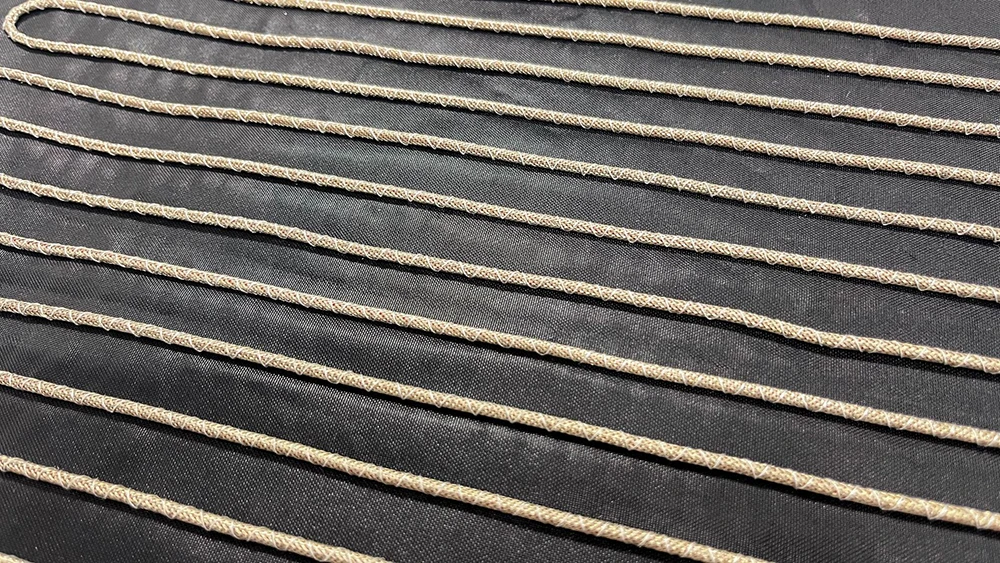

Electric Heating Pad Mattress Thermal Carpet Blanket, etc.

29.

Certification

CE, RoHS

30.

Language

Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol.

31.

OEM

Yes

32.

Working lasting

24 hours long lasting

33.

HS code

8452219000
