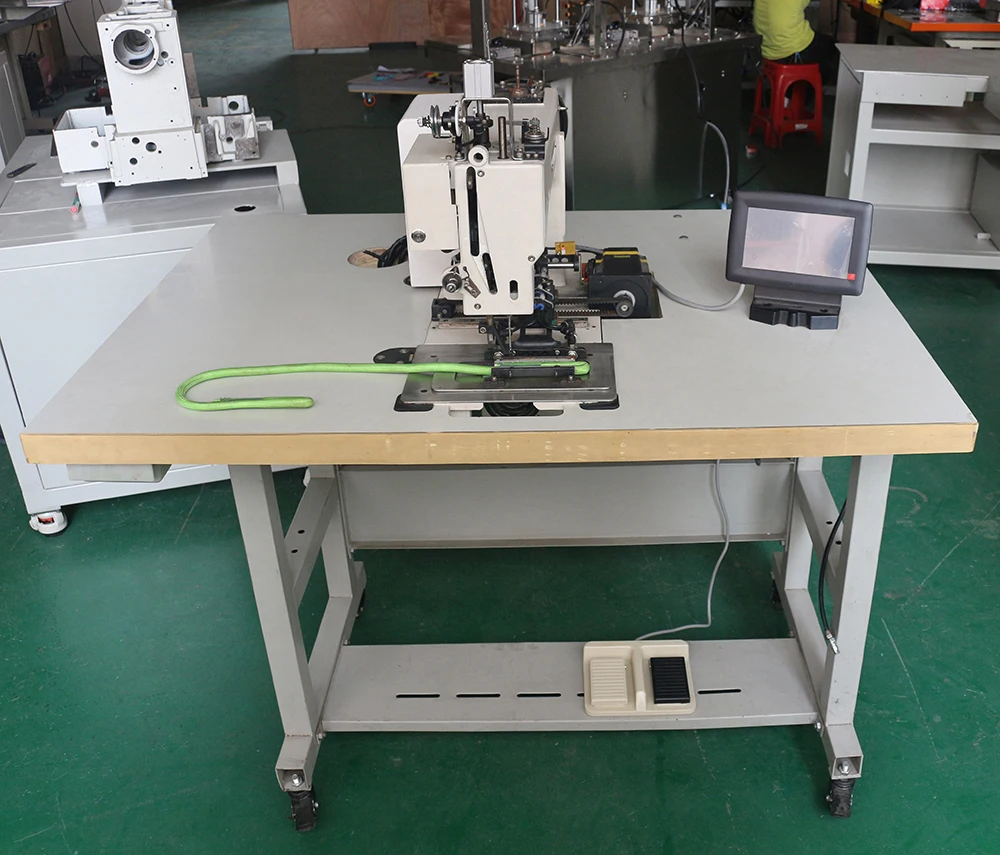

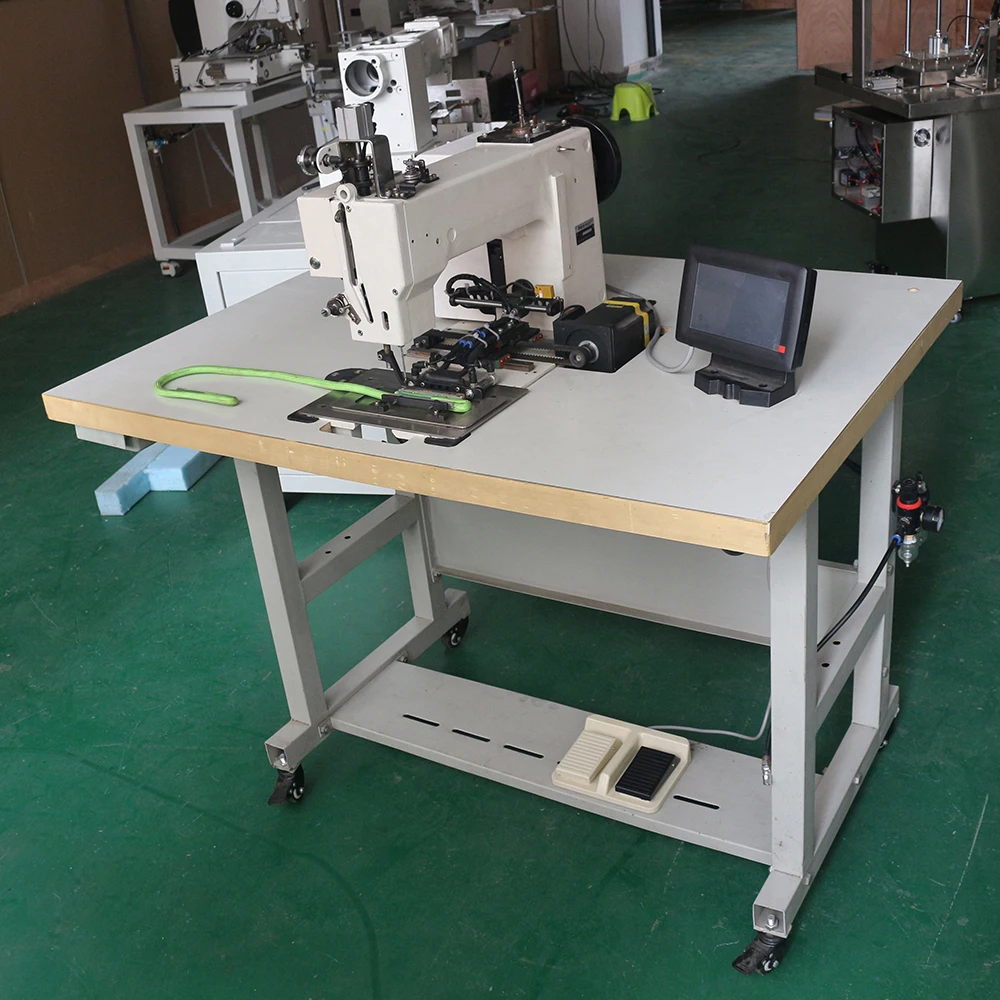

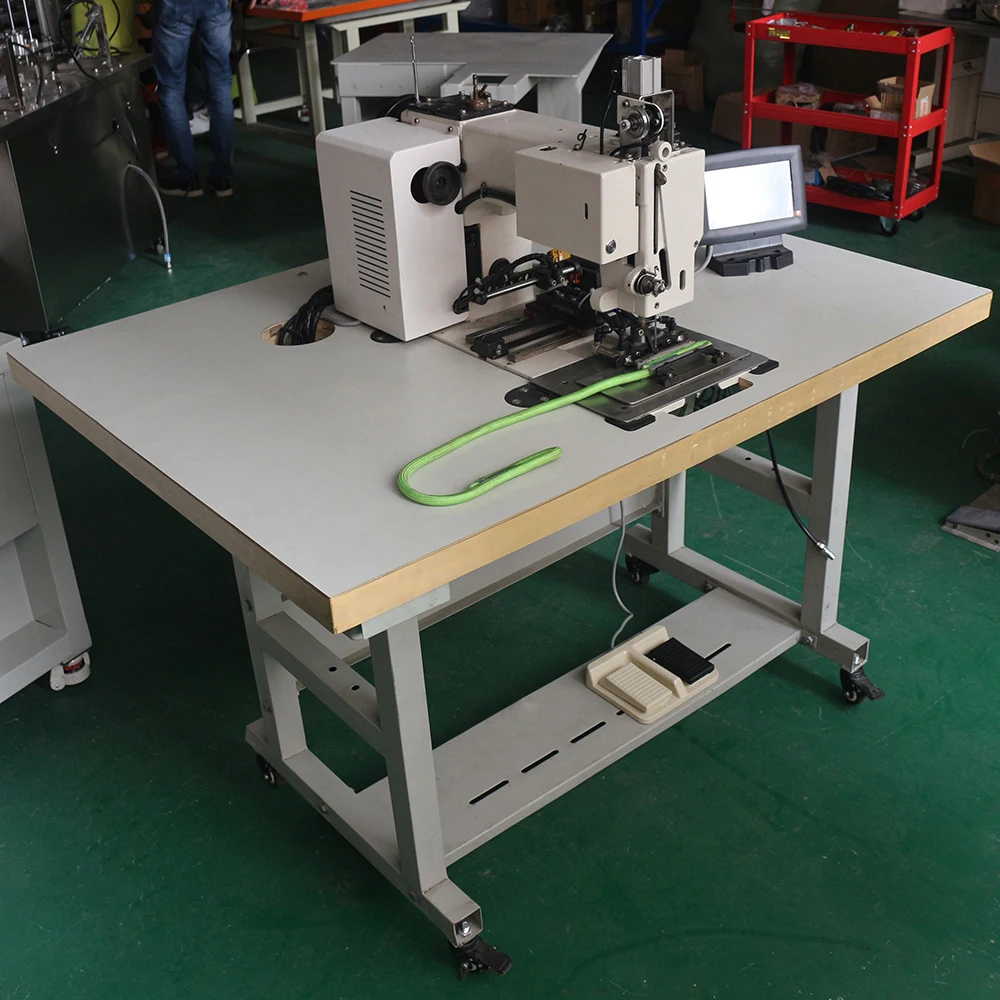

Automatic Safety Rope Belt Webbing Sling Computer Pattern Sewing Machine

2.

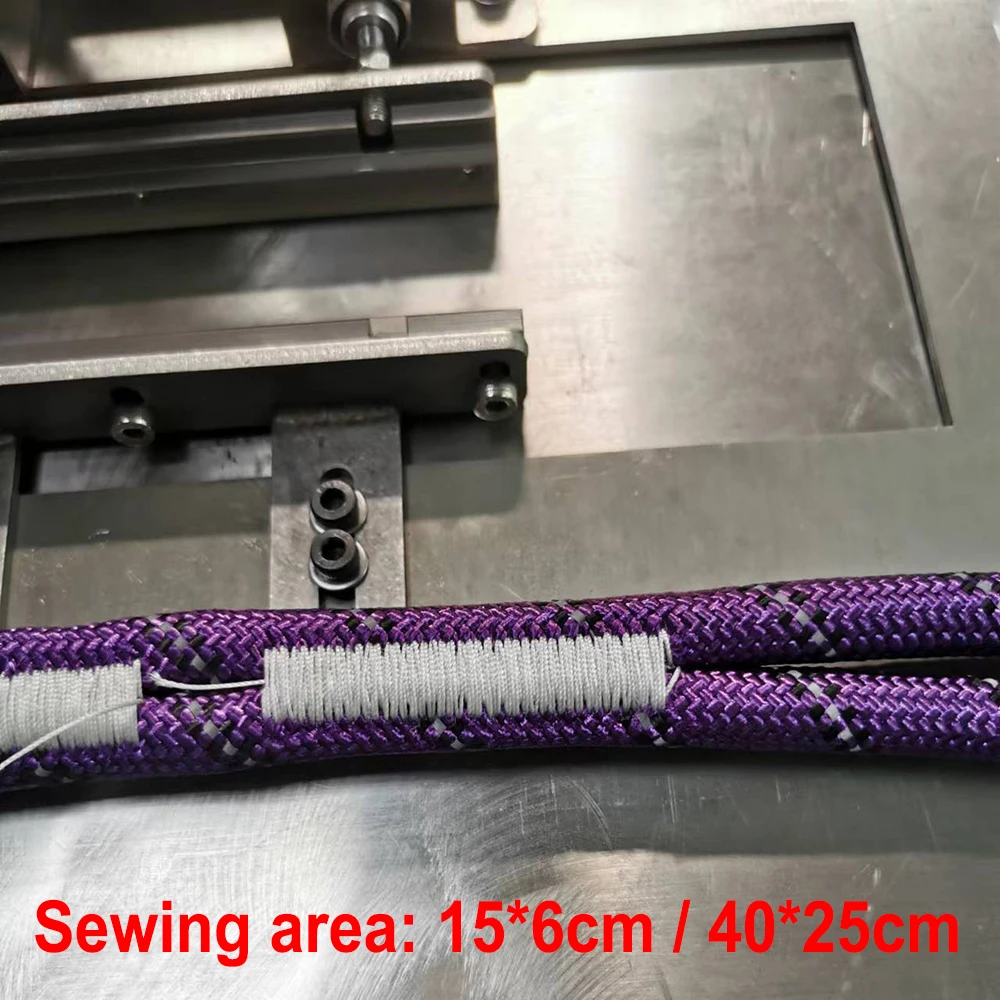

Sewing Area

X(Lateral) Direction Y(Longitudinal) Direction
150(mm) x 60(mm) / 400(mm) x 250(mm)

3.

Max. Sewing Speed

800rpm

4.

Stitch Length

1～25mm

5.

Needle Bar Stroke

56mm

6.

Needle

DY*3

7.

Feed Motion of Frame

Intermittent feeding (2-shaft driven by pulse motor)

8.

Lift of Intermediate Presser

20mm

9.

Air pressure

0.5～0.55 MPa

10.

Hook

Large Barrel shuttle hook

11.

Memory of Pattern Data

Memory/U Disk

12.

Pause function

Stop the machine during the sewing

13.

Scaling Up/Down Function

Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per
step)

14.

Scaling Up/Down Method

Increasing / decreasing stitch length & Increasing / decreasing stitch number

15.

Pattern Selection Function

Pattern No. selection method

16.

Up counter

No Count/Count of Pattern /Count of Cycle (0～99999)

17.

Down Counter

No Count/Count of Pattern /Count of Cycle (0～99999)

18.

Sewing Machine Motor

Servo Motor

19.

Stop Needle at Highest Position Function

After the completion of sewing, the needle can return to its highest position

20.

Rated Power

850W

21.

Operation Temperature Range

0℃～45℃

22.

Operation Humidity Range

20%～85% （No Dew Condensation）

23.

Line Voltage

AC 220V ± 10%；50/60Hz

24.

Plywood box size

120x100x128cm / 120x115x131cm

25.

Packing volume

1.536cbm / 1.8078cbm

26.

Gross weight

300kg / 310kg

27.

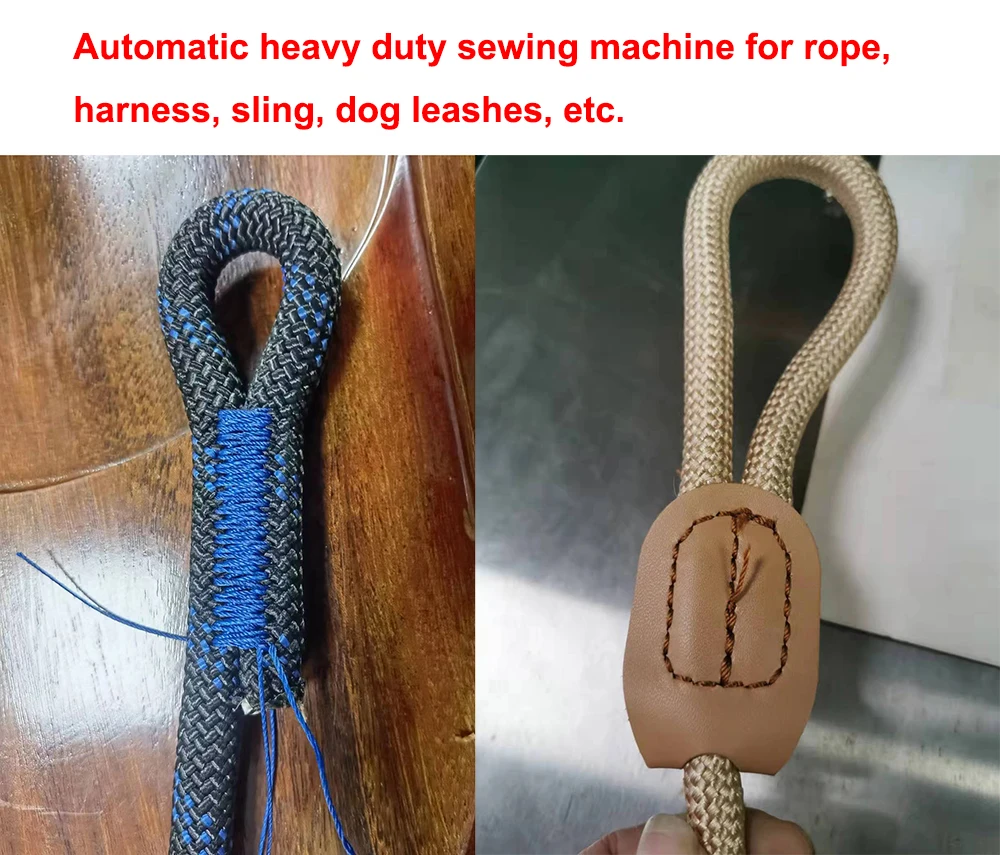

Application

Rope, harness, sling, dog leashes, etc.

28.

Certification

CE, RoHS

29.

Language

Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol.

30.

OEM

Yes

31.

Working lasting

24 hours long lasting

32.

HS code

8452219000
