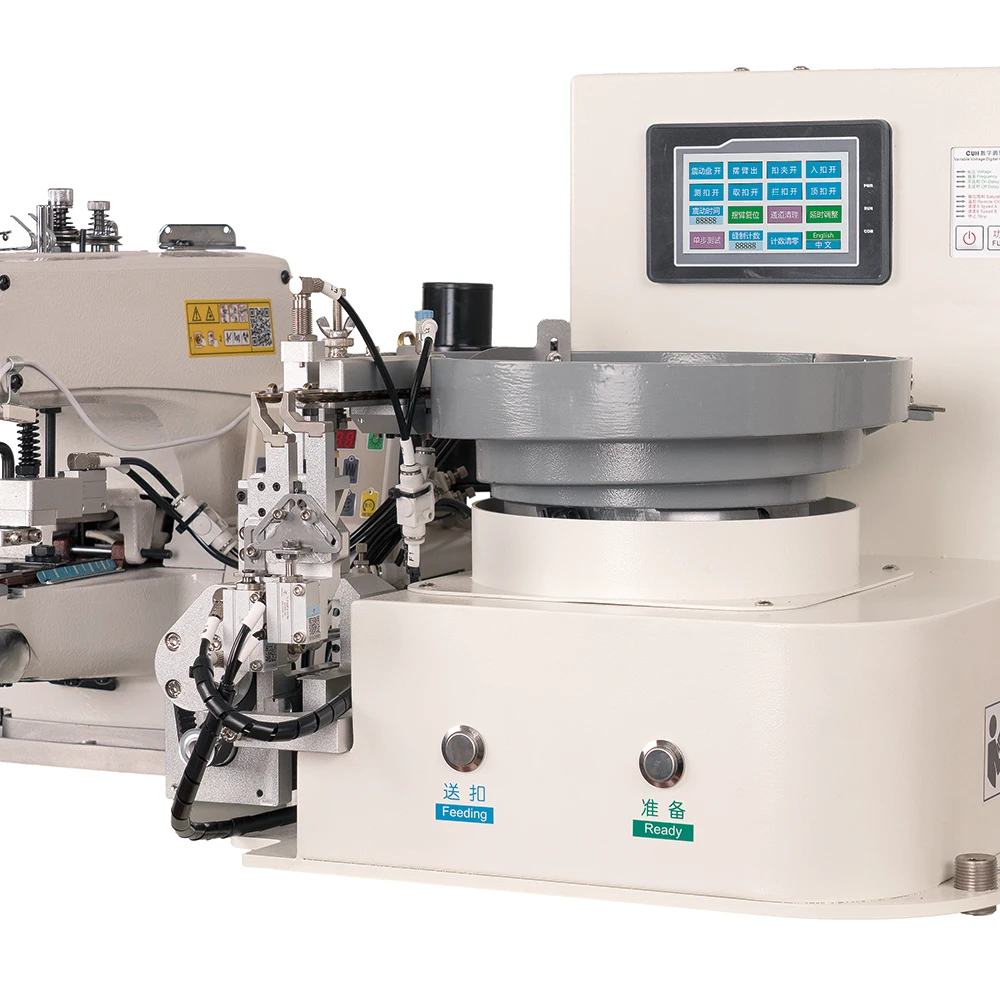

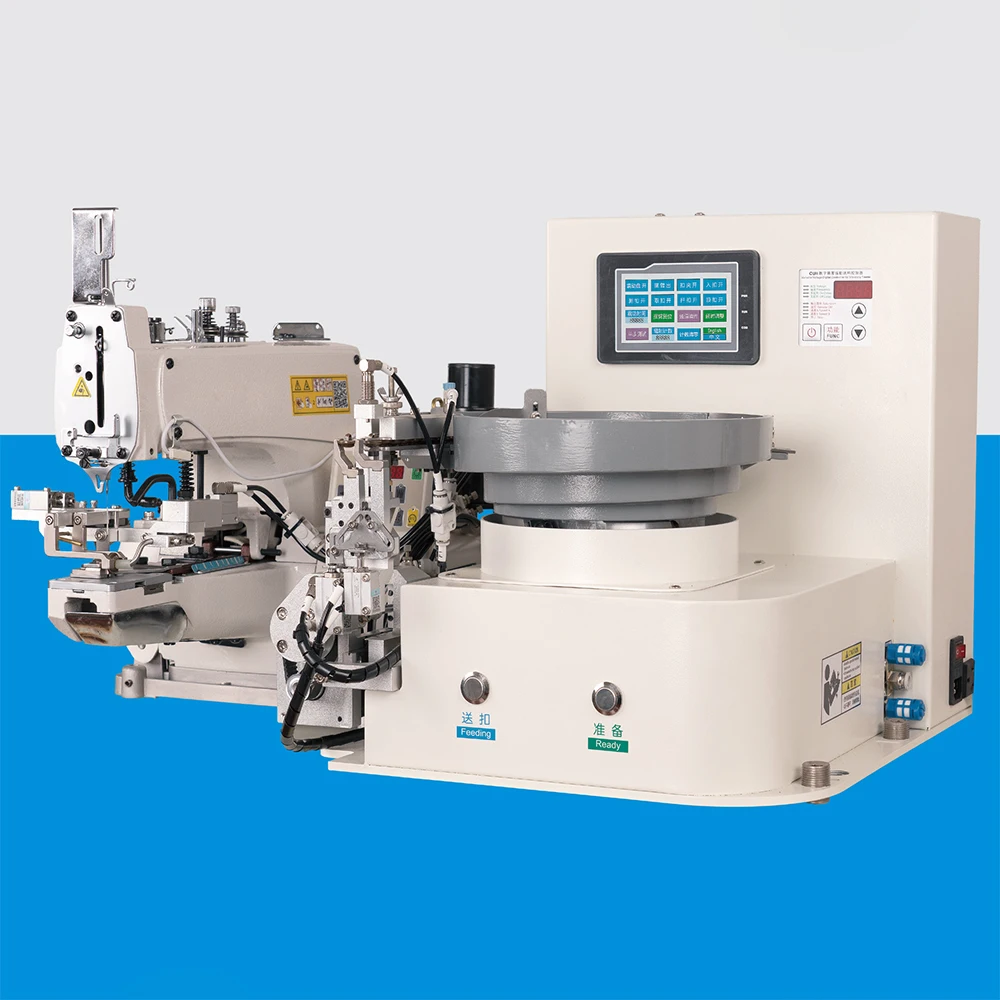

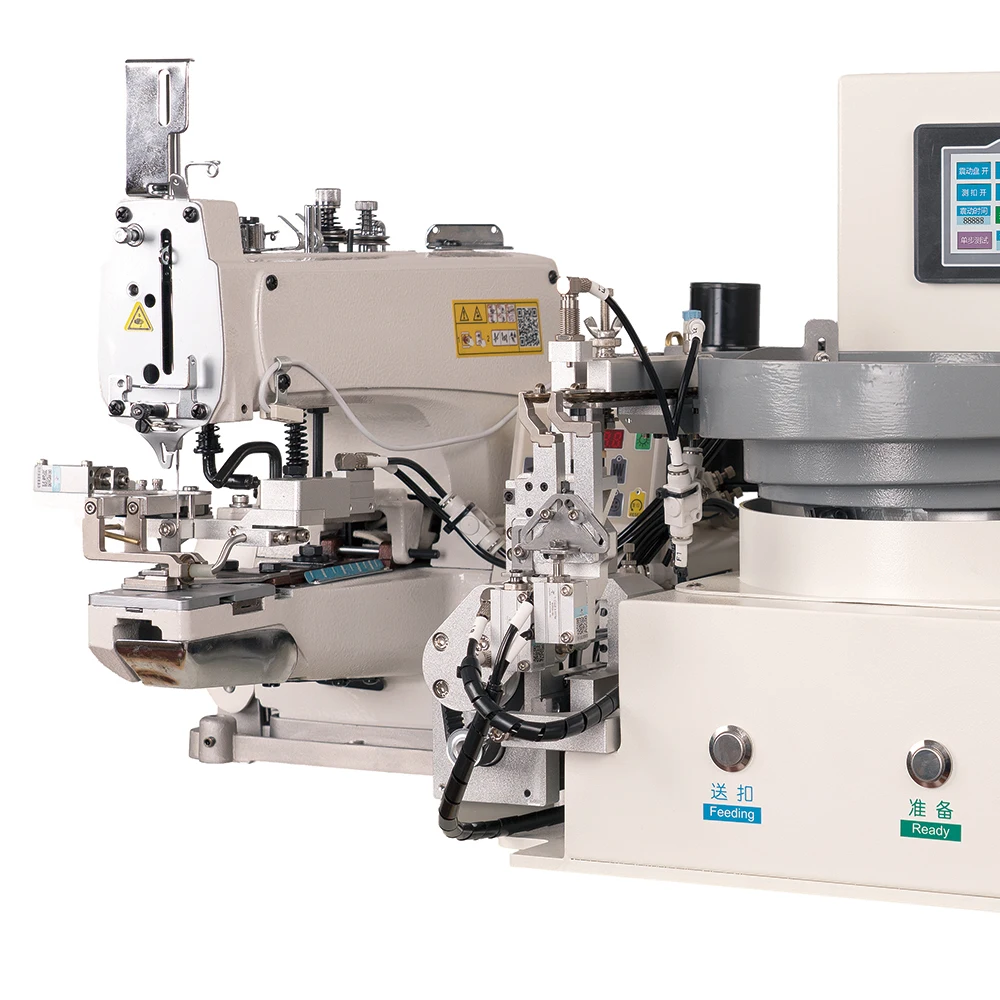

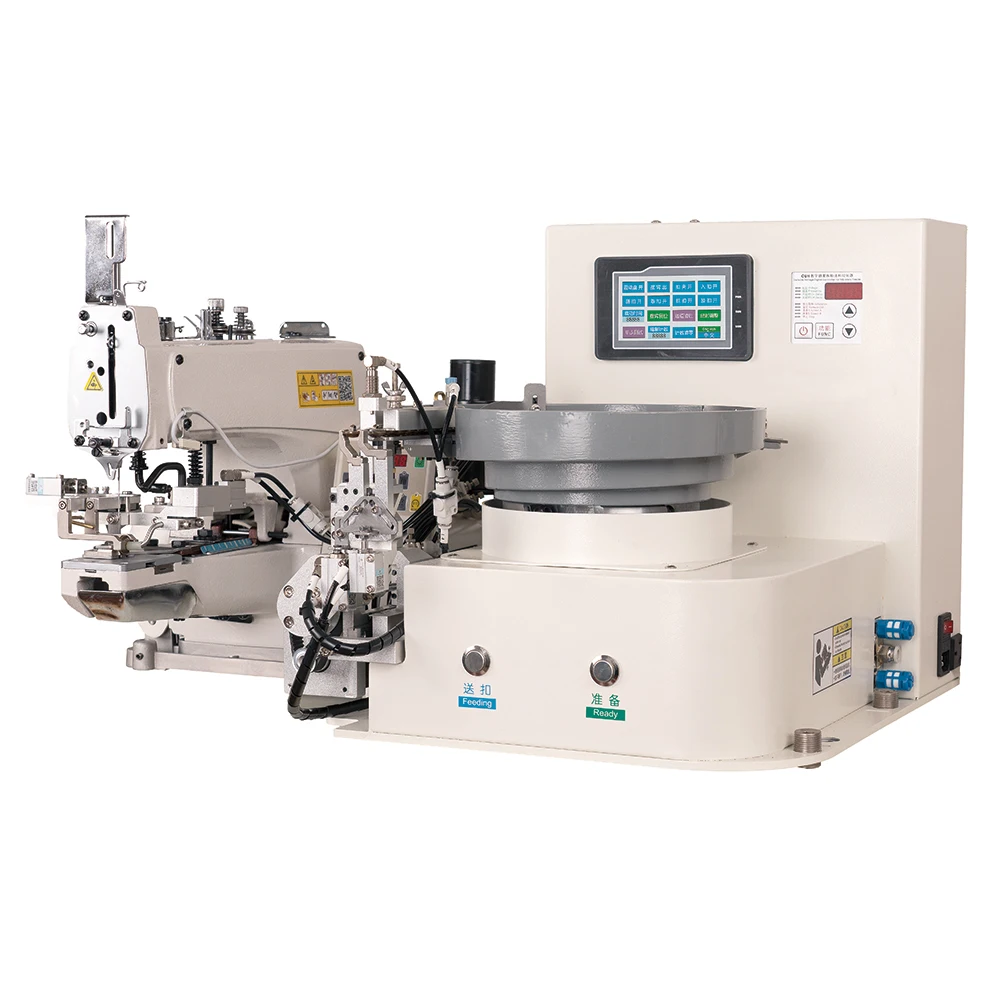

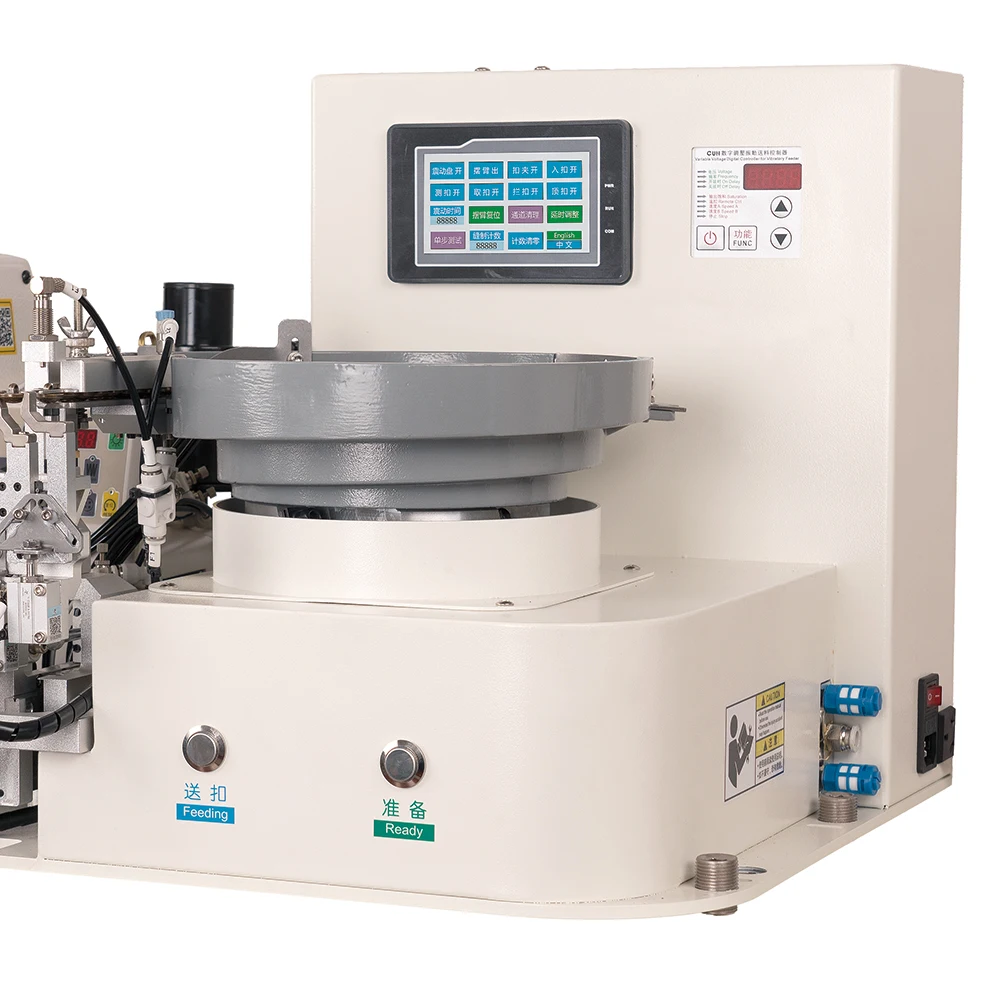

Children's Clothing Button Attaching Machine

2.

Max. Sewing Speed

3200 RPM

3.

Stitch Length

0.1～12.7mm, and in the control system is of version 5.0 or above, the maximum stitch length can extend to 40 mm（Min Resolution:
0.10mm）

4.

Feed Motion of Frame

Intermittent feeding (2-shaft driven by pulse motor)

5.

Needle Bar Stroke

41.2mm

6.

Needles

DPx17/14#

7.

Lift of Frame

Standard 18mm to Max. 22mm（Pneumatic type: Max. 25mm）

8.

Intermediate Presser

Stepping Driving (Range: 0～8mm)

9.

Lift of Intermediate Presser

20mm

10.

Rotating Shuttle

Double-capacity semi-rotary hook

11.

Memory of Pattern Data

Memory/U Disk

12.

Pause function

Stop the machine during the sewing

13.

Scaling Up/Down Function

Allows a pattern to be scaled up/down on the X axis and Y axis independently when user sews a pattern. Ratio: 1% to 400% (0.1% per
step)

14.

Scaling Up/Down Method

Increasing / decreasing stitch length & Increasing / decreasing stitch number

15.

Sewing Speed Limitation

200～3200rpm（100rpm per step）

16.

Pattern Selection Function

Pattern No. selection method

17.

Up counter

No Count/Count of Pattern /Count of Cycle (0～99999)

18.

Down Counter

No Count/Count of Pattern /Count of Cycle (0～99999)

19.

Sewing Machine Motor

Servo Motor

20.

Stop Needle at Highest Position Function

After the completion of sewing, the needle can return to its highest position

21.

Rated Power

750W

22.

Operation Temperature Range

0℃～45℃

23.

Operation Humidity Range

35%～85% （No Dew Condensation）

24.

Line Voltage

AC 220V ± 10%；50/60Hz

25.

Plywood box size

128*80*145cm

26.

Packing volume

1.49cbm

27.

Gross weight

165kg

28.

Application

For garments, clothes, etc.

29.

Certification

CE, RoHS

30.

Language

Chinese, English, Burmese, Korean, Turkish, Japanese, Vietnamese, Italiano, Portuguese, Espanol.

31.

OEM

Yes

32.

Working lasting

24 hours long lasting

33.

HS code

8452219000
